WS110-WA425

WaStop® Access

WaStop Access is a complete solution with WaStop detachable in a chamber for easy operation and maintenance. The solution immediately protects people and properties from flooding and backflow, odor and pests in the stormwater and sewer systems.

WASTOP® ACCESS
Technical specifications

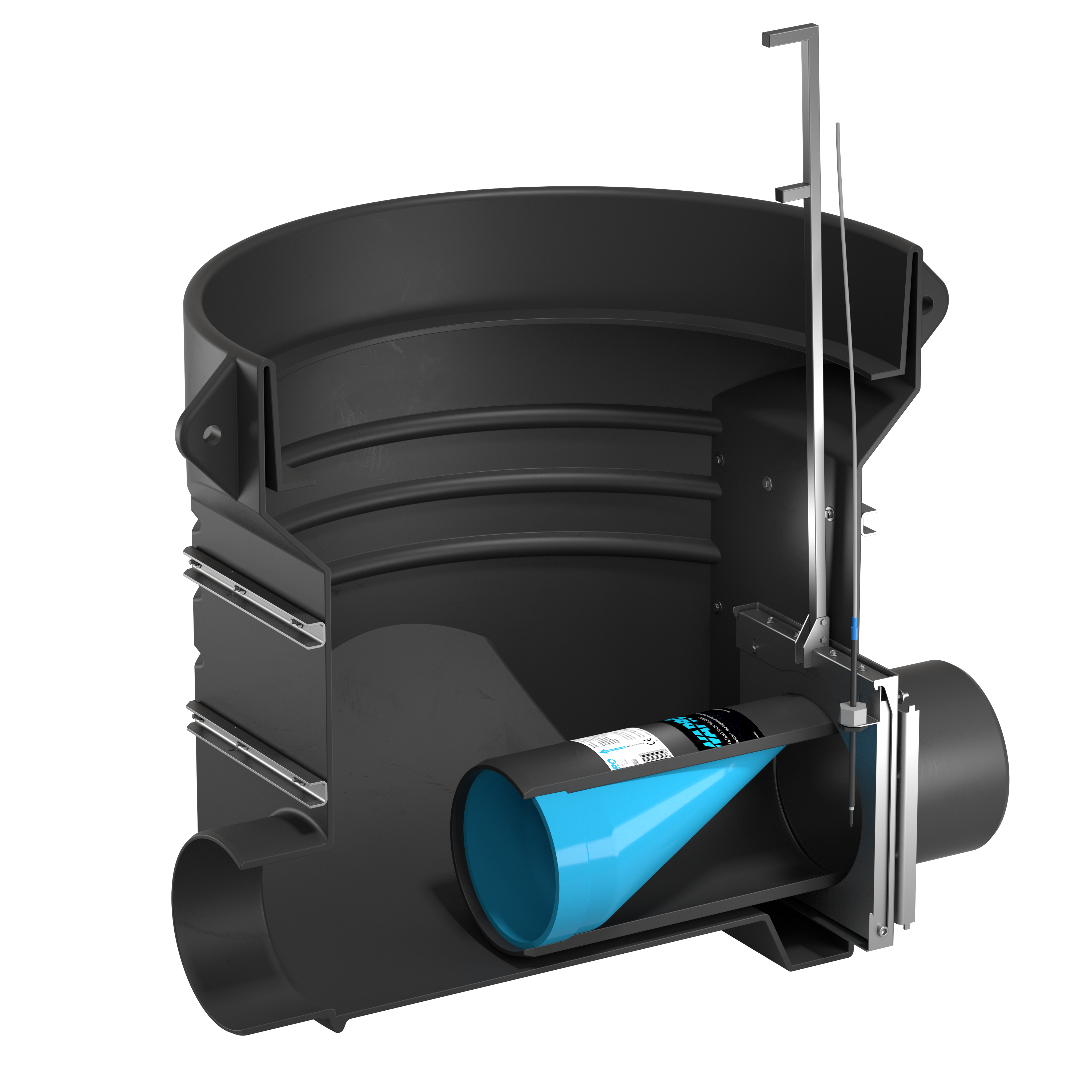

WaStop Access is a complete solution in which WaStop is installed. WaStop is a membrane check valve that is normally closed. WaStop comprises two main components: a conical membrane and a valve unit. The solution is extremely adaptable as regards installation options. Common installations:

  • inlets and outlets
  • existing pipes

The solution of an access chamber is available standard in NPS 4"- NPS 6" in a NPS 17" chamber and Large in NPS 4" - NPS 12" adjacent. There is also a chamber with descent option: "Access Chamber Large" NPS 40" with NPS 8"- NPS 12" adjacent. We also customize solutions.

Please feel free to contact us, and we will help you find the right solution based on your requirements.

Download technical specification
Drawings
Drawings and technical specifications
Documents

We at Wapro believe in opportunities. By being an open organization, we can learn from our customers and share our experiences. Below you will find all the information about our products and also other useful and interesting information. Contact us if you are missing something.

Specifications
Nominal Pipe Size
NPS/OD 4
Weight
28.70 lb
Riser
16.70 in
Chamber Diameter
19.10 in
Invert-Ground min.
23.60 in
Outer Diameter
21.70 in
c
21.50 in
Construction length
28.20 in
